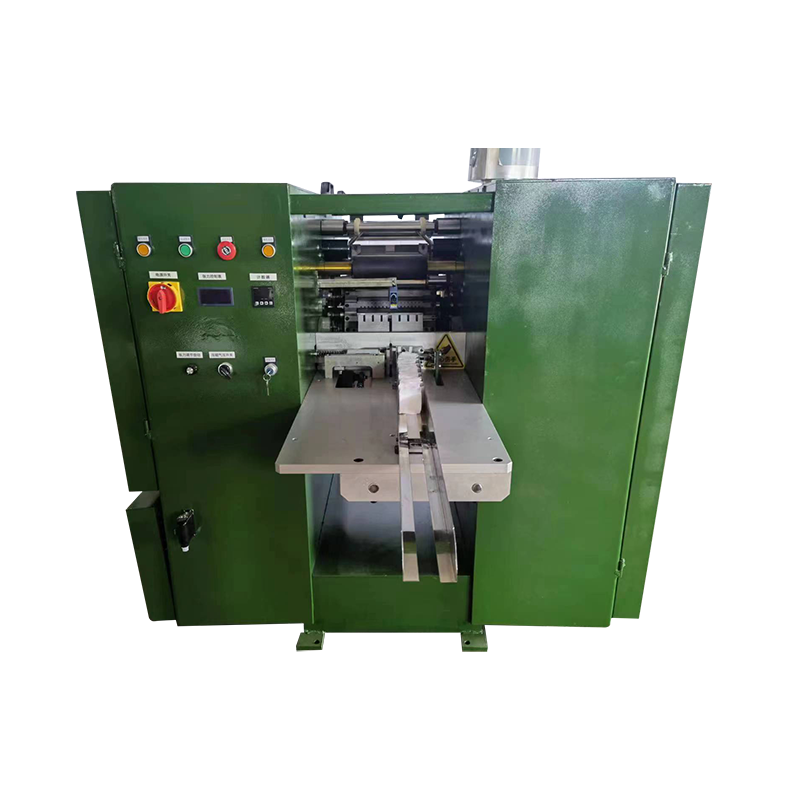

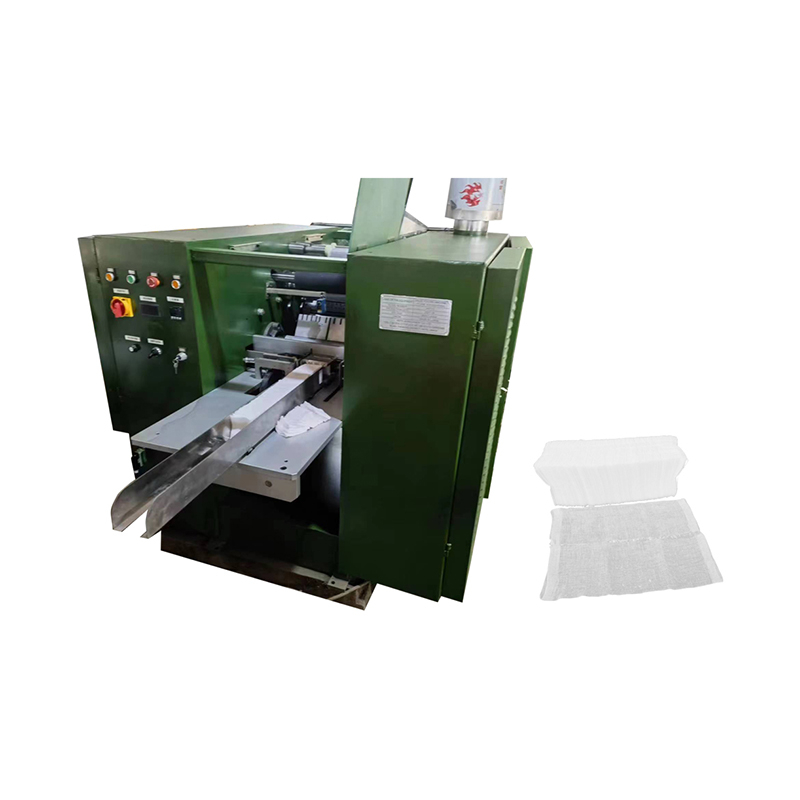

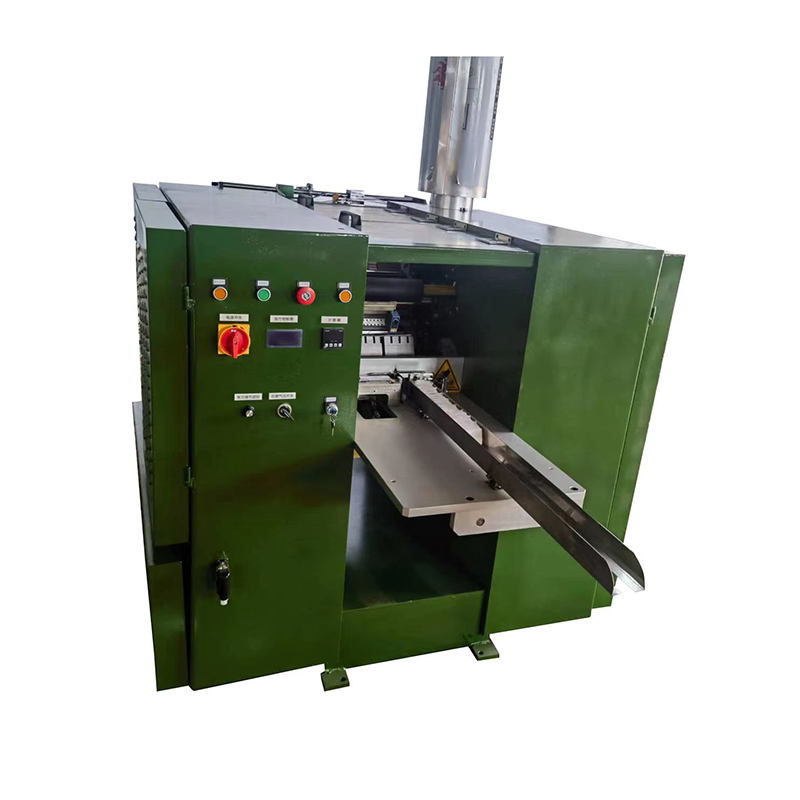

Main features:
1. Only need one operator, high capacity.
2. Adopt the latest operation system, frequency control speed, easy to operate and maintain.
3. With electric-eye, machine will stop automatically while run out of gauze fabric, fabric joints, or bad swab.
4. Automatic spray water device, gauze swabs come out with good folding effect.
5. With tension control system, easy to control tension of gauze roll material.
6. Automatic quantity counting system.
7. Special edge folding cam, edge of gauze will not go out.
8. Suction design, comparing with normal type folding machine, this high speed folding machine requests lower maintenance cost, longer use life, and higher efficiency.
9. Function of perm x-ray thread can be added on customer’s request.
10. HS code:8451500000
Technical Data
Model No. | JA-5050 | JA-7575 | JA1010 |
Design Speed （pcs/min） | 200 | 180 | 145 |
Products Size | 5*5cm | 7.5*7.5cm | 10*10cm |
Products Layers | 8,12,16 | 8,12,16 | 8,12,16 |
Automatic quantity counting | Yes | Yes | Yes |
Max Diamter Of Gauze Roll | 1000mm | 1000mm | 1000mm |
Machine Size | 3000*1400*1350mm | 3200*1550*1400mm | 3300*1750*1450mm |
Power | 5.9KW | 6.7kw | 7.7kw |
Voltage | 380v/3ph | 380v/3ph | 380v/3ph |
Machine Frequency | 50Hz | 50Hz | 50Hz |
Air Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Water Pressure | 0.2Mpa | 0.2Mpa | 0.2Mpa |
Machine Weight | 1500kg | 1900kgs | 2300kgs |
Volume | 70-80 dBA | ||
| |
