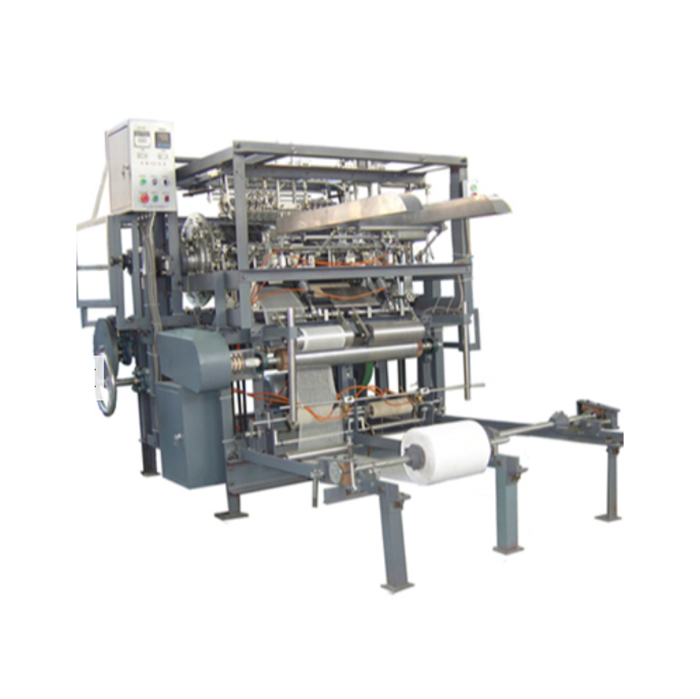

European Style Gauze Folding

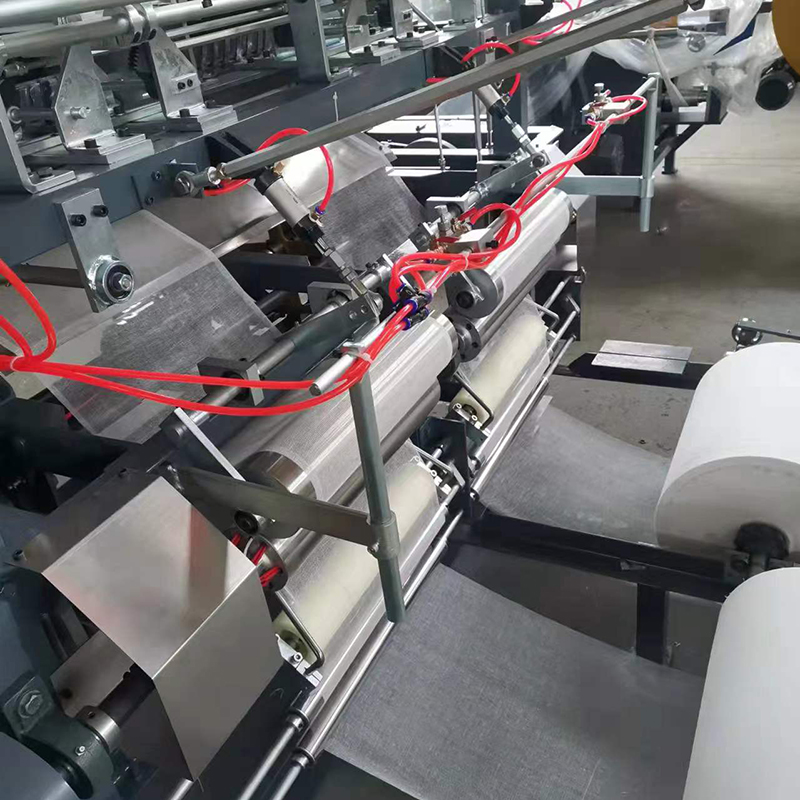

This gauze sponge folding machine(gauze swab folding machine / gauze compress folding machine / medical gauze pad folding machine), is suitable to fold gauze swab with unfolded edge automatically, also called European folding type, with automatic quantity counting.
Availability:
Quantity:

Model No.

JAE-5050

JAE-7575

JAE-1020

Design Speed (pcs

/min)

270

270

90

Products Size

5x5cm

7.5*7.5cm

10*20cm

Lane

6

6

2

Products Layers

8, 12, 16layer

8, 12, 16layer

8, 12, 16layer

Automatic quantity counting

Yes

Yes

Yes

Max Diamter Of Gauze Roll

1000mm

1000mm

1000mm

Machine Size

2500*1900*2000mm

2500*2200*2000mm

2500*2400*2000

mm

Power

5.0KW

5.5KW

6.5KW

Voltage

380v/3ph

380v/3ph

380v/3ph

Machine Frequency

50/60HZ

50/60HZ

50/60HZ

Air Compressor

0.6Mpa

0.6Mpa

0.6Mpa

Water Compressor

0.2Mpa

0.2Mpa

0.2Mpa

Machine Weight

1200kg

1350kgs

1550kgs

Volume

70-80 dBA
