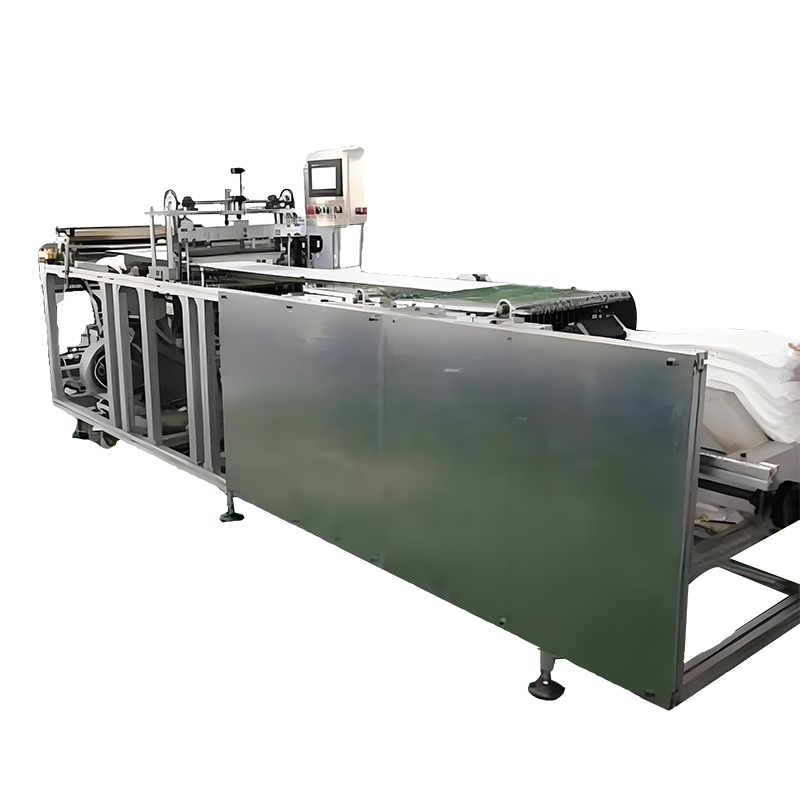

Main Features
1. Skeleton structure, belt conveying by metal gate.
2. PLC control, stable production. Touch-screen control panel is easy to adjust parameter, when change size of product, it only need to adjust parameter on touch-screen, by adjusting simple machine to change the position of folding edge. Easy to operate.
3. Intermittent operation mode, the whole technical flow is very clear, and you can monitor the real time work process at any time.
4. Key part-cuter, it is made by alloy tool steel, available to use, long service life. 5.With cyclometer counter, workload of counting the output has been eliminated.
6. Since the labor demand is less and the germ contents is reduced because of less human touch, products is hygienic.
7. Work pace: 9-19pcs/min, maximum capacity is 1140pcs/hour.
8. Longitudinal length of product is adjustable, cutting length error is not more than ±3mm.
Technical
Parameter
Model No. | JA5025 |
Design Speed （pcs/min） | About 19 pcs/min |

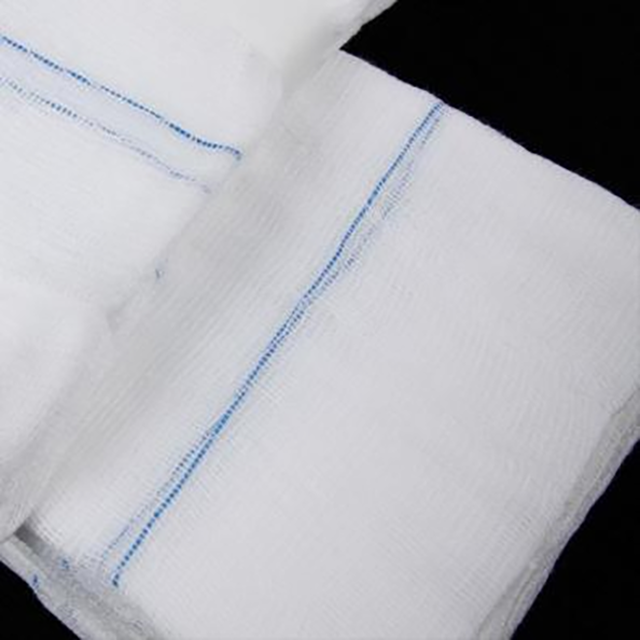

Products Size | 45*45cm,60*30cm,80*40cm,50*50cm,80*20cm and 80*60cm |
Products Layers | 4,6.8 |
Automatic quantity counting | Yes |
Max Diamter Of Gauze Roll | 1000mm |
Machine Size | Main body size :9500*1500*1800mm |
Material Rack Size:2000*1500*950mm | |
Power | 4.0KW |
Voltage | 380v/3ph |
Machine Frequency | 50HZ |
Air Compressor | 0.5-0.8Mpa |
Machine Weight | 1800kg |
