Main
Featuresand Functions:
1. With the pneumatic control of crashing knives and Cut-off knives, it is simple and clean to operate. It is direct and convenient to set the sizes of lateral parting and cutting. With
pneumatic compression, the wobble deviation has been nearly eliminated, therefore the service life of cutting spindles and knives have been greatly prolonged.
2. During winding, the tension control device works to make it suitable to cut raw gauze with too many joints and unbalanced tension.
3. Frequency converter controls the speed to achieve driving with constant tension and constant linear velocity, precise speed regulating, stable running, and accurate counting.
Technical Data Sheet :

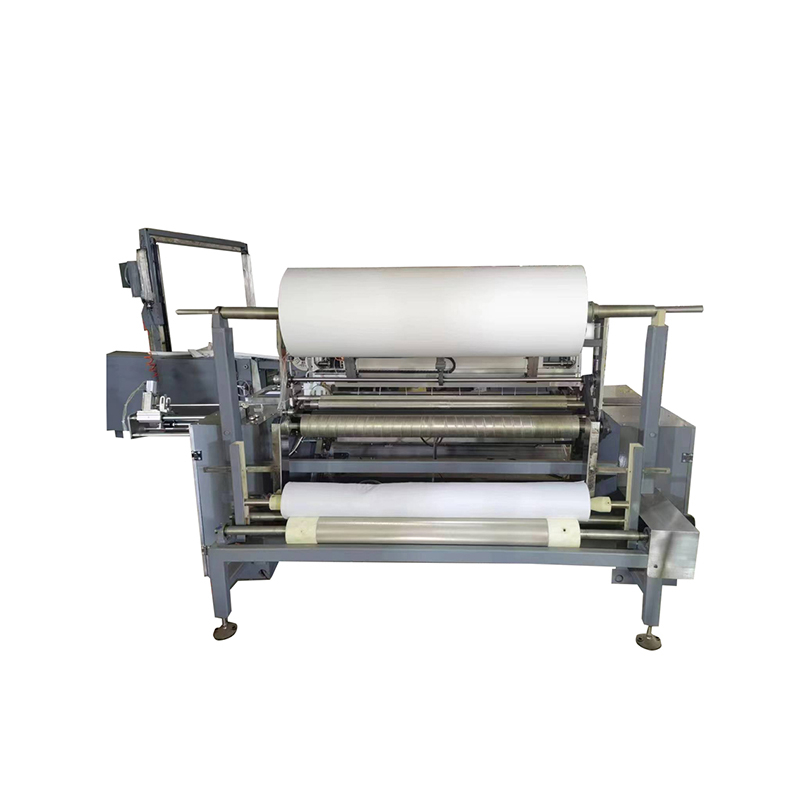

| Product name | Jumbo gauze roll slitting machine |
| Model No. | JA-120 |
| Material | Jumbo gauze roll |
| Unwind Roll width(Max) | 120 |
| Unwind Roll ID | 76mm |
| Unwind Roll OD | 1000mm Max |

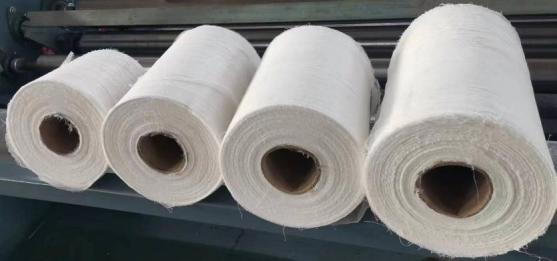

| Finished roll width | 30mm to max unwind roll width |
| Finished Roll ID | 76mm |
| Finished Roll OD | 1000mm Max |
| Design Speed | Max:150meter/min |
| Machine Size | 2500*1800*1900mm |
| Power | 5.0KW |
| Electric source | 380V |
| Frequency | 50/60HZ |
| Air compressor | 0.8Mpa |
| Net weight | 1000kgs |
| Knife | 8 sets |
| Electric magnetic valve | 1 set |
| Balance roller | 3 pcs |
| Inflatable Shaft | 2 pcs |
Main Featuresand Functions:
1. With the pneumatic control of crashing knives and Cut-off knives, it is simple and clean to operate. It is direct and convenient to set the sizes of lateral parting and cutting. With
pneumatic compression, the wobble deviation has been nearly eliminated, therefore the service life of cutting spindles and knives have been greatly prolonged.
2. During winding, the tension control device works to make it suitable to cut raw gauze with too many joints and unbalanced tension.
3. Frequency converter controls the speed to achieve driving with constant tension and constant linear velocity, precise speed regulating, stable running, and accurate counting.
Technical Data Sheet :
| Product name | Jumbo gauze roll slitting machine |
| Model No. | JA-120 |
| Material | Jumbo gauze roll |
| Unwind Roll width(Max) | 120 |
| Unwind Roll ID | 76mm |
| Unwind Roll OD | 1000mm Max |
| Finished roll width | 30mm to max unwind roll width |
| Finished Roll ID | 76mm |
| Finished Roll OD | 1000mm Max |
| Design Speed | Max:150meter/min |
| Machine Size | 2500*1800*1900mm |
| Power | 5.0KW |
| Electric source | 380V |
| Frequency | 50/60HZ |
| Air compressor | 0.8Mpa |
| Net weight | 1000kgs |
| Knife | 8 sets |
| Electric magnetic valve | 1 set |
| Balance roller | 3 pcs |
| Inflatable Shaft | 2 pcs |
